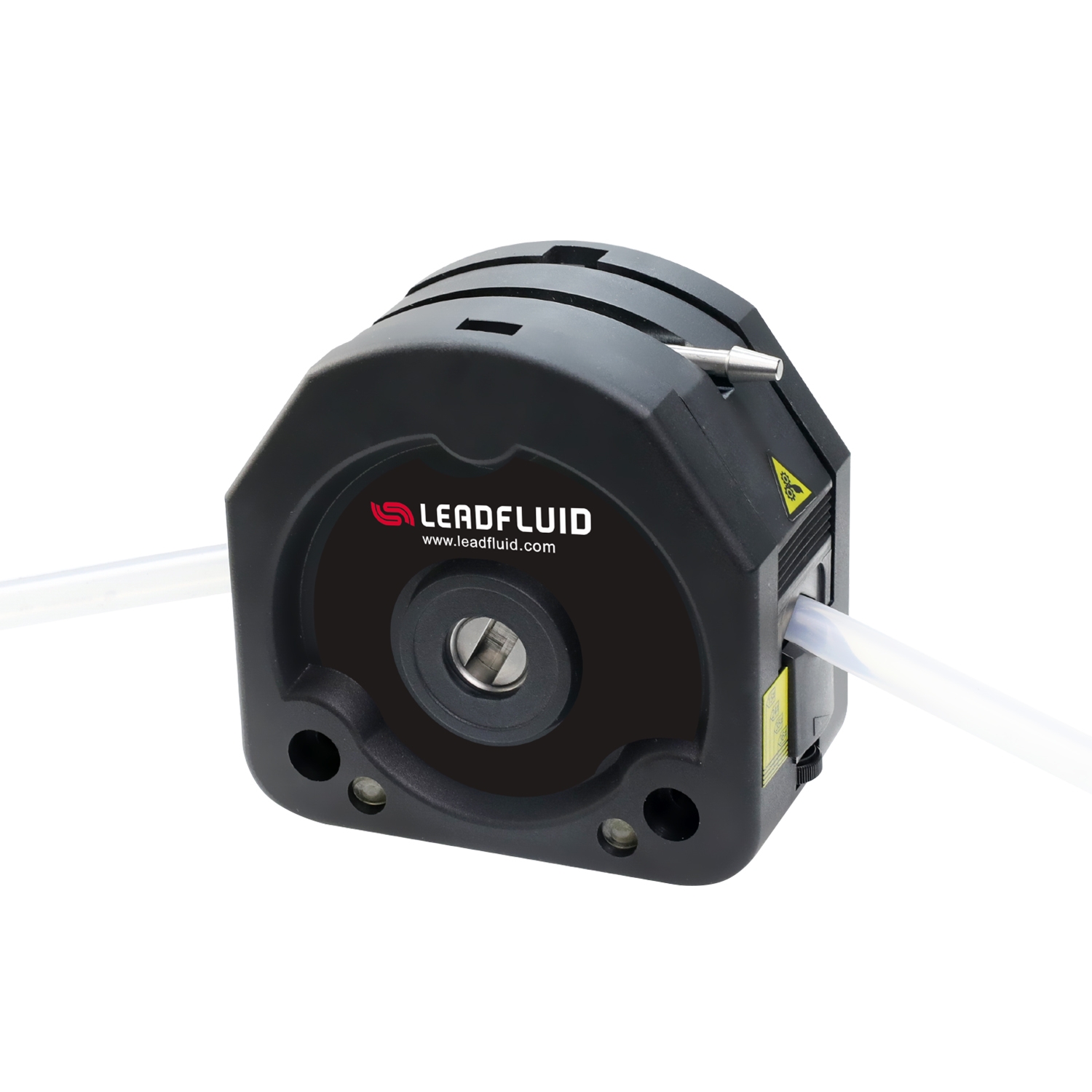

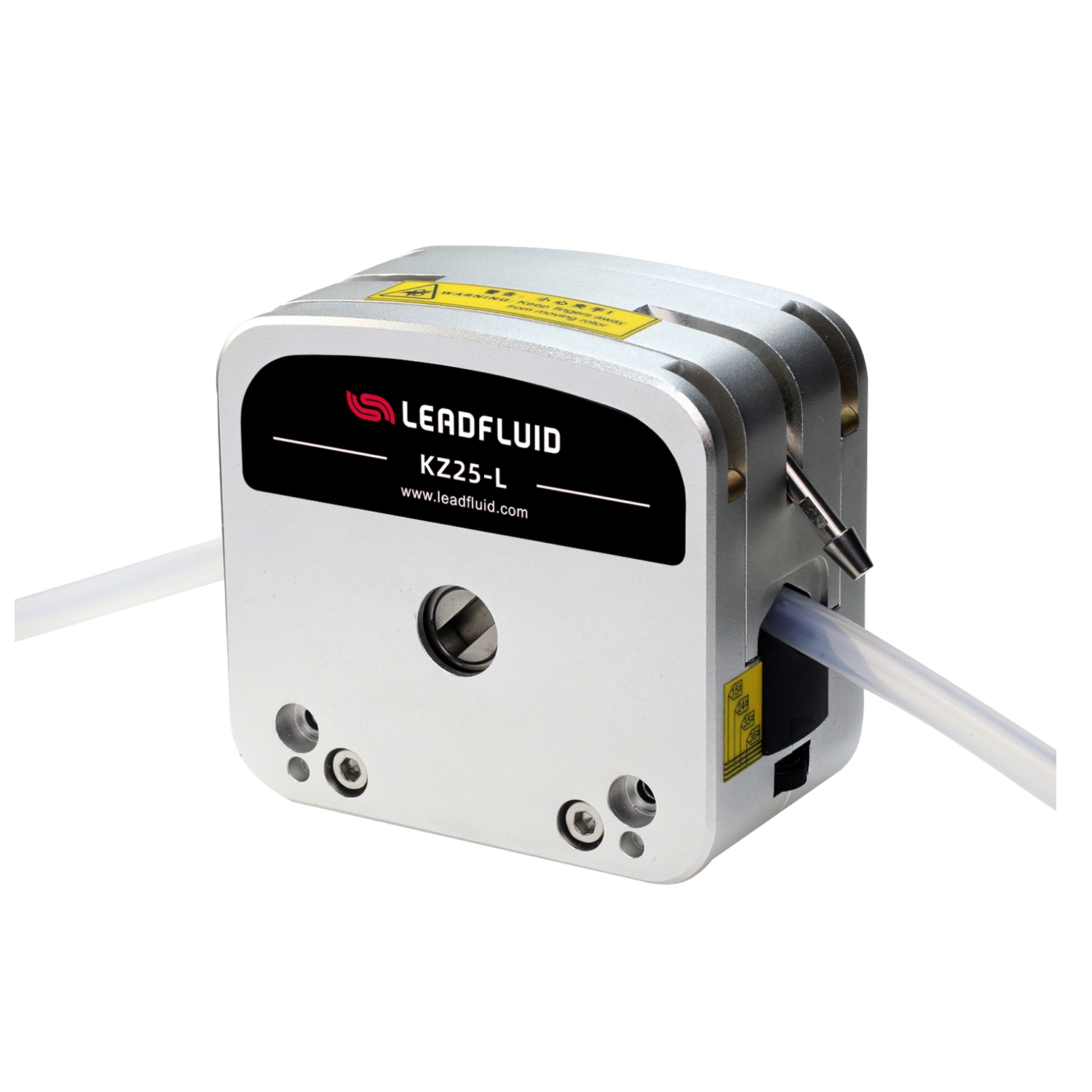

KZ25 Series Peristaltic Pump Head

■ Lead Fluid KZ25 pump head flow range 0.31~6600mL/min, suitable for 15#, 24#, 35#,36# tube, can be cascade multiple pump heads.
■ Easy, fast load and replace tubes.
■ The rollers adopts 304SS, excellent mechanical properties, canw ork continuously at high speed for a long time.
■ The shell adopts kinds of material, suitable for various working environment.

Flow: 0.31~6600mL/min

Pump Head Material

Shell: PPS,PC,AL
Roller: SS304
Roller shaft: SS304
Upper holder block: PPS,AL

Flow Parameters

Tube material:Silicone,Pharmed,Viton,Chemical,A-60-G/F,etc.

Wall thickness:2.4mm

ID(mm) 4.8 6.4 7.9 9.6
Tube 15# 24# 35# 36#
mL/rpm 3.1 5.3 7.7 11
mL/min( continuous working max 100rpm) 1860 3180 4620 6600

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.

Pump Head Specification

  • Flow range: 0.3 1 ~ 6 6 0 0mL/min
  • Speed range: 0 .1~600rpm/min
  • Tube: 15#,24#,35#,36#
  • Channel: 1
  • Roller: 3
  • Tubing fixing: Manual
  • Clearance adjustment: Fixed

Dimension(mm)

Tube Life Comparison Table

Notes:
The above data are all test results obtained by Lead Fluid laboratory under normal temperature and pressure for the transmission of pure water, which are for reference only; the actual service life may be affected by specific factors such as pressure, temperature, medium characteristics, tube batch and wall thickness; for specific problems, please contact Lead Fluid engineers to get better technical support.

Statement:The final explanation right of above information belongs to Lead Fluid.
