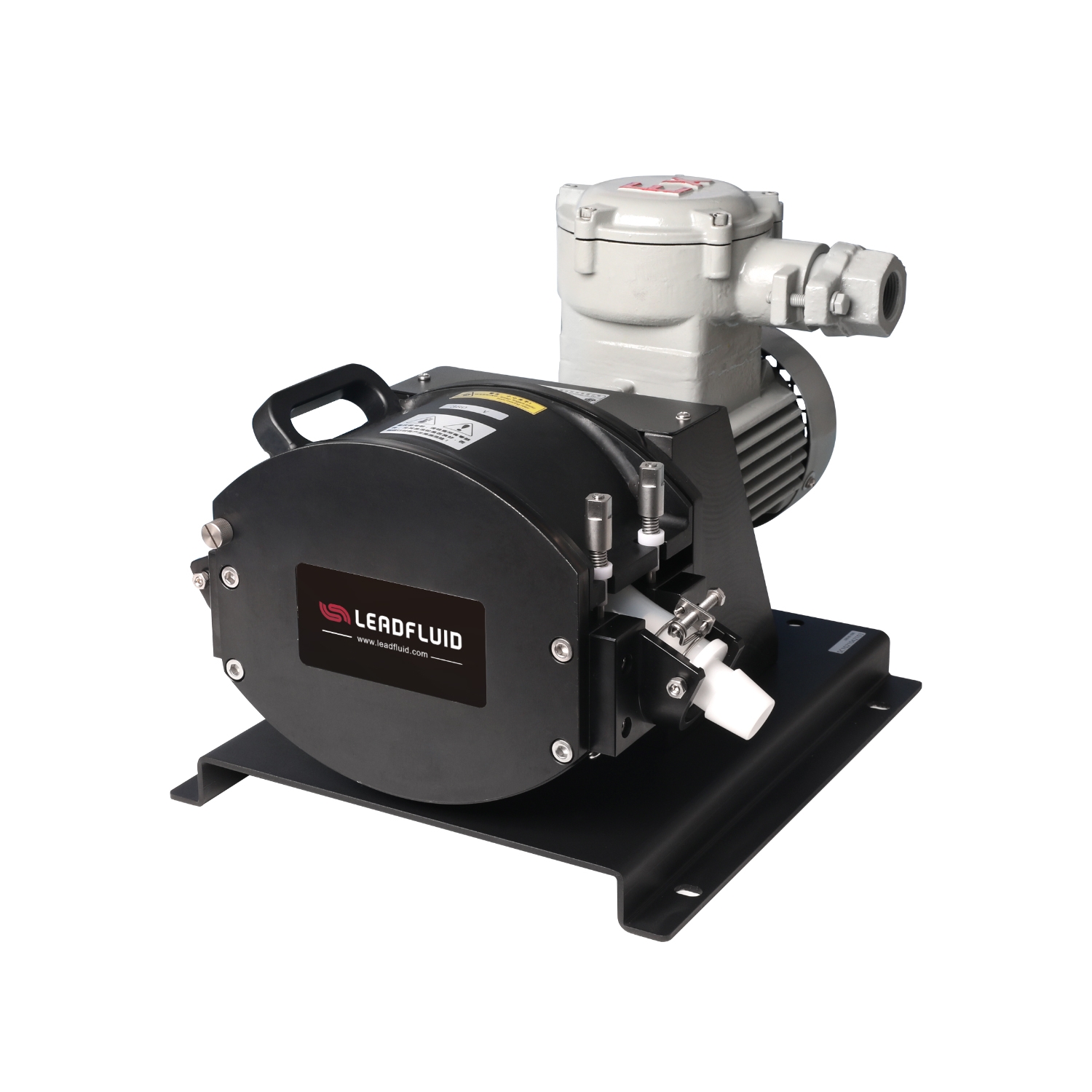

Function and Feature
• Industrial grade AC frequency conversion explosion-proof motor (ExdIIBT4), with special pump head, safe and reliable.
•External frequency conversion control, with functions such as adjust speed, start-stop, reversible direction,analog adjust speed, R S485 communication.
•Pump head roller adopts planetary gear tr ansmission structure, strong power.
•The roller rotates with power to roll and rub with the tube to extend the life of tube.
•Open the cover to stop the pump function to ensure the safety of the operator.
•Elastic pressure tube structure extends pump tube life.
•Stepless speed, speed r ange 34.5rpm～345rpm, speed r esolution 0.77rpm.
•Split design, the driver is separated from the frequency conversion, suitable for a variety of working environment.
•Large torque design, stable operation, max flow is 33l/min.
•IP55 high protection grade, suitable for complex working environmen.
•The standard frequency conversion is not explosion-proof and cannot be placed in a flammable and e xplosive environment.
Remark:
1. Industrial gr ade explosion-proof frequency conversion is op tional.
2. Protective shell can be installed.
3. Cust omizable all-in-one model.
Technical Parameters
- Pump head: PL48
- Display function: Frequency converter display the Hz or flow rate (analog)
- Flow range: 0.6～33L/min
- Speed range: 34.5～350rpm
- Speed resolution: 0.1HZ（corresponding speed 0.77rpm）
- Adjust speed: Frenquency converter steppless speed （standard frequency converter motor without connection cable）
- Control function: Adjust speed, start/stop, reversible direction, analog speed control, RS485 communication
- Speed accuracy: ＜±3%
- Power supply: 3 phase 380V 50Hz
- Power consumption: 400W
- Working condition: Temperature 0 ～ 40℃, relative humidity＜80%
- Anti-explosion grade: ExdIIBT4
- IP grade: IP55(motor)
- Dimension (L×W×H): 469×383×323mm
- Weight: 49Kg
Applicable Pump Head and Tube, Flow
| Drive type | Pump head | Ch | Tubing size | Single Channel Flow Rate（mL/min) |
| FP300S-A3 | PL48 | 1 | 88# 92# 193# 191# | 600～33000 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Dimension（mm）
Statement：The final explanation right of above information belongs to Lead Fluid.
