BT300F Intelligent Dispensing Peristaltic Pump

Description

BT300F Intelligent dispensing peristaltic pump provides flow range from 0.006-1600 mL/min with variable pump heads and tubings. It’s easy to operate with the intuitive and clear interface with color LCD touch screen. There are four operation modes available: Volume Dispense Mode, Time Dispense Mode, Copy Dispense Mode and Flow Mode. The system minimizes working noise due to the intelligent cooling fan control. With RS485 MODBUS interface, the pump is easy to communicate with external device, such as PC, HMI or PLC.

  • Flow: 0.006-1600mL/min
  • Max: 4 Channels
SKU: BT300F Category:

Description

Functions and Features

  • Color LCD display, touch screen and keypad for operating.
  • Reversible direction, start/stop control and adjustable speed.
  • Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
  • Anti-drip function ensures dispense accuracy.
  • Three dispense modes available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles.
  • Store five groups of working parameters for each dispense mode (power-off memory).
  • Flow rate display and control; cumulative dispense volume display.
  • Flow rate calibration.
  • 0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system. Configure system with setup wizard.
  • Intelligent temperature control to minimize working noise.
  • External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
  • With RS485 MODBUS interface.
  • Internal double-layer isolation structure, circuit board with conformal coating make the pump dust-proof and moisture proof.
  • Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
  • Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
  • Drive multi-channels and variable pump heads.
  • Optional footswitch and remote infrared control.

Specifications

  • Flow range: 0.006-1600 mL/min
  • Speed range: 0.1-350 rpm
  • Speed resolution: 0.1 rpm
  • Speed accuracy: 0.2%
  • Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
  • Power consumption: <50W
  • External logic level control signal: 5V, 12V (standard), 24V (optional)
  • External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
  • Communication interface: RS485 MODBUS
  • Operating condition: Temperature 0~40°C; Relative humidity < 80%
  • IP grade: IP31
  • Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
  • Weight: 5.3 kg (11.7 lbs)

BT300F Suitable Pump Heads and Tubing, Flow Parameters

Drive type Pump head Ch Tubing size Flow rate per channel (mL/min)
BT300F
(304SS case)

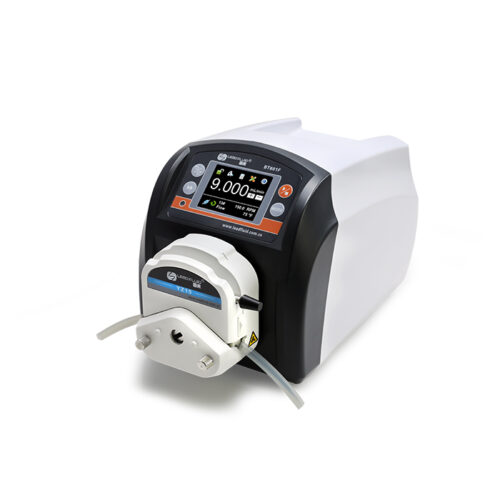

YZ15 1 13# 14# 16# 19# 25# 17# 0.006-990
YZ25 1 15# 24# 0.16-990
2 x YZ15 2 13# 14# 16# 19# 25# 17# 0.006-990
2 x YZ25 2 15# 24# 0.16-990
YT15 1 13# 14# 16# 19# 25# 17# 18# 0.006-1300

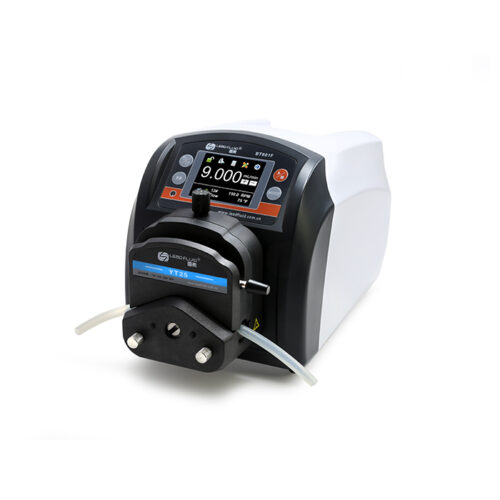

YT25 1 15# 24# 35# 36# 0.16-1600
2 x YT15 2 13# 14# 16# 19# 25# 17# 18# 0.006-1300
DT15-14 1 16# 19# 25# 17# 0.05-930
DT15-24 2 16# 19# 25# 17# 0.05-930
DT15-44 4 16# 19# 25# 0.05-610
